TIQT Universal Quatro LNB, slim line, RAL 7035 TR304844

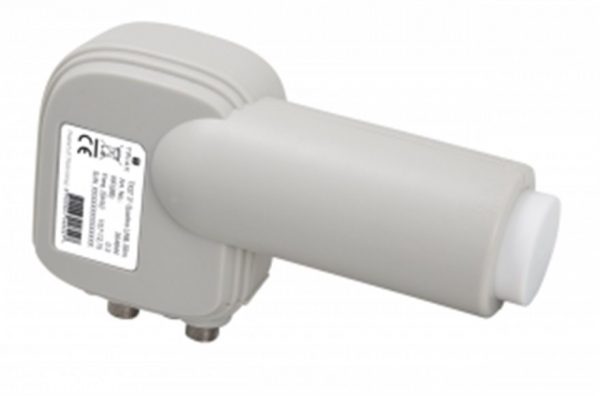

Triax TIQT Universal Quattro LNB, Slim Line, RAL 7035
Full KU-band coverage for both analogue and digital reception. Excellent noise figure and low phase noise. High gain and excellent cross-pole isolation. High output and low power consumption.

Specifications:
Characteristics:
Phase noise @ room temperature – 1 kHz: -50 dBc/Hz
Phase noise @ room temperature – 10 kHz: -75 dBc/Hz
Phase noise @ room temperature – 100 kHz: -95 dBc/Hz
Spurious level: -60 (max) dBm
Image rejection (min): 40 dB
Feedhorn diameter: Ø 40 mm
LNB type: Quattro
Switching low band: 0.0 kHz
Switching high band: 22 (± 4) kHz
Frequency

Input frequency low band: 10.7 – 11.7 GHz
Input frequency high band: 11.7 – 12.75 GHz
Output frequency low band: 950 – 1950 MHz
Output frequency high band: 1100 – 2150 Mhz
L.O frequency low band: 9.75 Ghz
L.O frequency high band: 10.6 Ghz
Gain

Conversion gain (max): 64 dB
Conversion gain (min at room temperature): 50 dB
Conversion gain (typ.) < 64 dB Noise figure max: 0.3 dB Isolation Cross polarization isolation: 25 typ. dB Operational DC Current consumption: 190 mA Operating voltage: 10.5 ~ 21.0 VDC Operating temperature range: -40 ~ +60 °C Connectors Connector type: F-female Mechanical Max. depth incl. Feedhorn: 135 mm Product Height: 137 mm Product Depth: 97 mm Product Width: 59 mm Colour: RAL 7035
